5.7. BIAS

../_images/image1008.png

Purpose

To add a constant value (offset, shift) to a signal.

Procedure

The input signal is added to the constant value and the result is transferred to the output channel.

Parameters

Parameter

input

unit

range

default

remarks

Add value

real

Remarks

None.

Examples

../_images/image1009.png

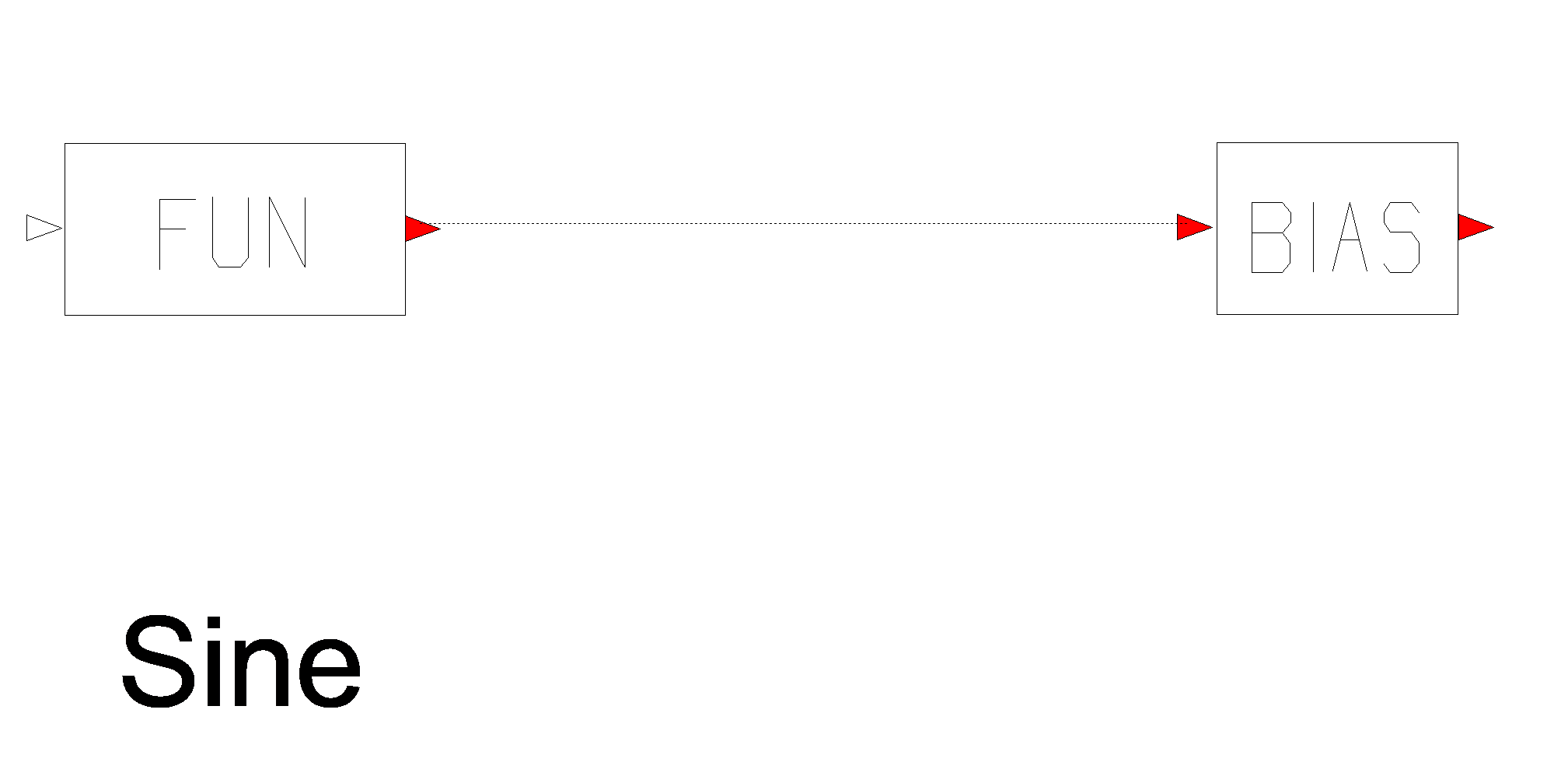

Fig. 5.7.1 Example system

../_images/image1010.png

Fig. 5.7.2 The red thick sine wave from the BIAS component is obtained from the thin green
