5.15. INTGRT¶
Purpose
Integrates an input signal with respect to time.
Procedure
The INTGR module integrates an input signal with respect to time, as follows:
(5.15.1)¶\[y = \int_{}^{}{x\left( t \right)}dt + c\]
Parameters
Parameter |
input |
unit |
range |
default |
remarks |
|---|---|---|---|---|---|
Initial value \(c\) |
real |
Remarks
None
Examples
Figure 1 presents a simple case where the INTGRT component is used to compute the amount of water delivered by two pumping stations over a period of one hour.

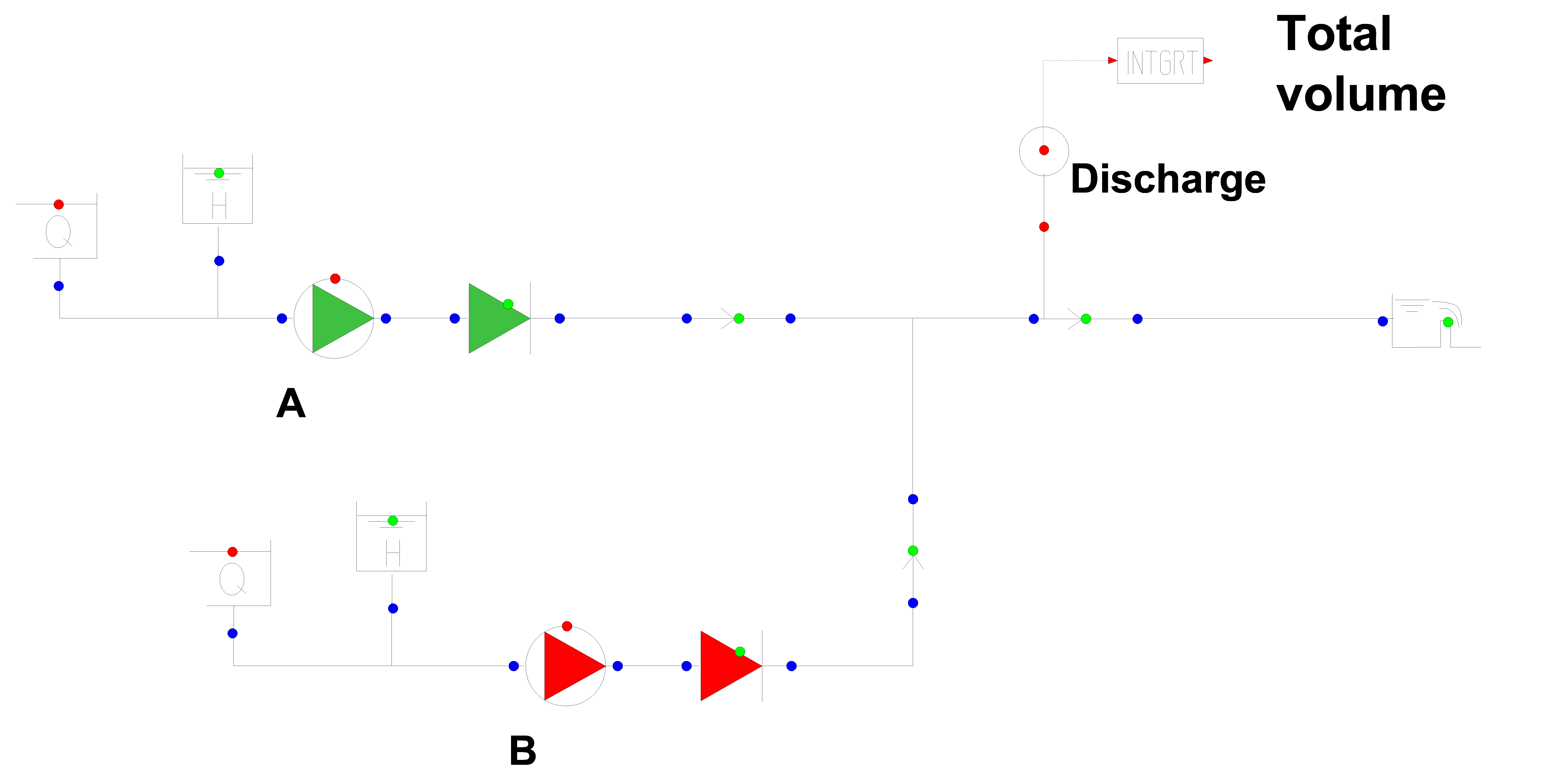

Figure 1: Scheme with a bulk water meter
|
|
Figure 2: discharge of both pumping stations |
Figure 3: Computed flow volume |
