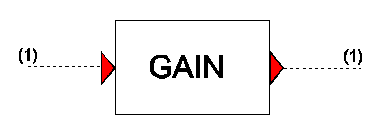

5.14. GAIN¶
Purpose
To multiply (amplify) a signal.
Procedure
The output signal is equal to the input signal multiplied by the ‘Multiply value’.
Parameters
Parameter |
input |
unit |
range |
default |
remarks |
|---|---|---|---|---|---|
Multiply value |
real |
Remarks
None.
Examples

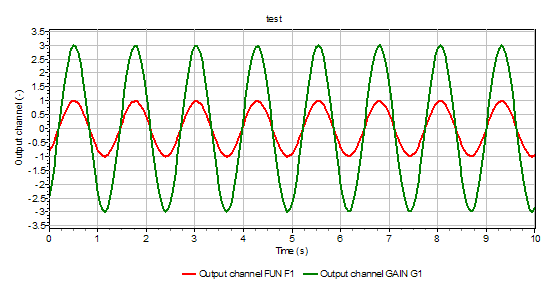

Figure 1 shows a normal sine signal (the FUN component) being amplified by the GAIN component.
|
